collapsing-formation-collapse-formation




Revealing textures, traces, gaps, peaks and valleys by passing the texture model through various filters




A new 2D texture pattern was created by drawing the patterns resulting from the filtering









    filled-empty areas
    density difference
    pattern
    big small
    hole pattern
    lines and slits


By examining the parameters of this pattern, we went down to the subheadings.








- circles are randomly distributed on the surface,
- circles are holes in the surface,
- distribution densities are different and random,
- there are areas on the surface where there are no circles: road and empty zone,
- some sets of circles form narrow paths.








- circle slits on roads and empty areas grow larger and the circle shape begins to deteriorate,
- circle slits close to roads and areas are more deformed and their elongation increases, they get closer to each other,
- spaces and paths become more obvious,











- flow and tearing continue to increase,
- circles lose their roundness due to tearing,
- further deterioration of road and space sections due to flats,








- Circles close to roads and spaces collapse more and begin to merge, and as they merge, the tension between them increases.
- so they continue to grow longer,
- In areas where there are sparse circles, the circles may stop collapsing,
- parts close to the gaps continue to coalesce and collapse,










- the tears coalesce and lengthen,
- other spaces continue to merge,
- the expansion of some spaces continues to stop,












- the cracks merge and form the surface again, but due to stresses the scars remain on the surface,











- the clefts merge, scars may or may not remain,
- other parts continue to collapse and coalesce,











- the collapses around the gaps combine to form the surface again,
- some of the other circles begin to merge to form new surfaces,








- new circle collapses occur due to the stresses occurring around and inside the gaps,
- since the stresses in some spaces are low, they continue to remain as surfaces,
- continues the cycle of circles that are not near spaces and paths merging and creating new spaces.









3D outputs of these parameters:

- The scars formed on the joined surfaces after tears rise upward (on the z axis) due to tension,
- the regions with collapsing circles decrease downwards (on the negative z axis),
- The road and empty surface parts remain constant.

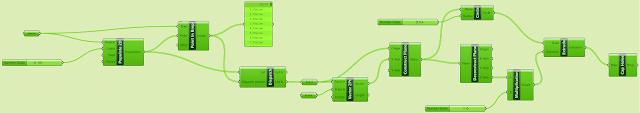

Grasshopper and Rhino Parameter Creation and Transition to Model


Grasshopper Parameter Variations






Rhino Models

model 1

model 2

model 3

model 4.1

model 4.2

model 5
